Warp Tensioner

Machine specifications

Machine frame	Profile welding
Front dividing panel	2mm sheet, ⌀5 alumina ceramic eyelet guide for yarn, and designed with reed at the rear
Guide roller	"W" type, 2 upper guide rollers with ⌀122mm, lower guide roller with ⌀ 122mm
Tension roller brake	Solenoid brake
Roller drive	Vector variable frequency motor
Roller control	Closed-loop control by vector variable frequency motor (constant tension control)
Tension detection	Pressure sensor, with on-line display
Length measurement	On-line measurement and display the length of each warp section

Machine details

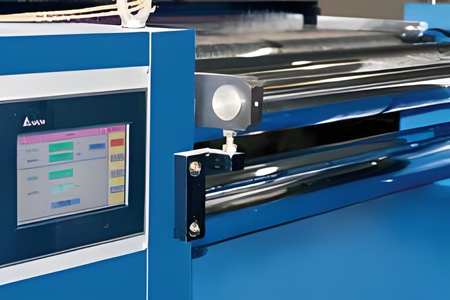

• W type guide roller
• Pressure sensor
• W type guide roller
