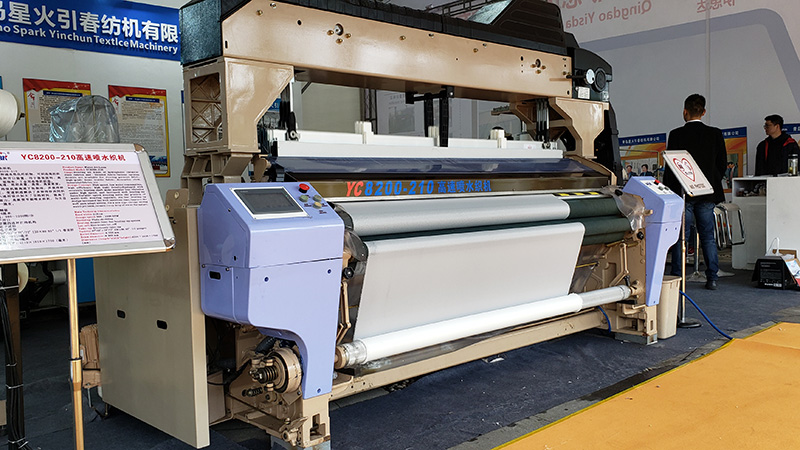

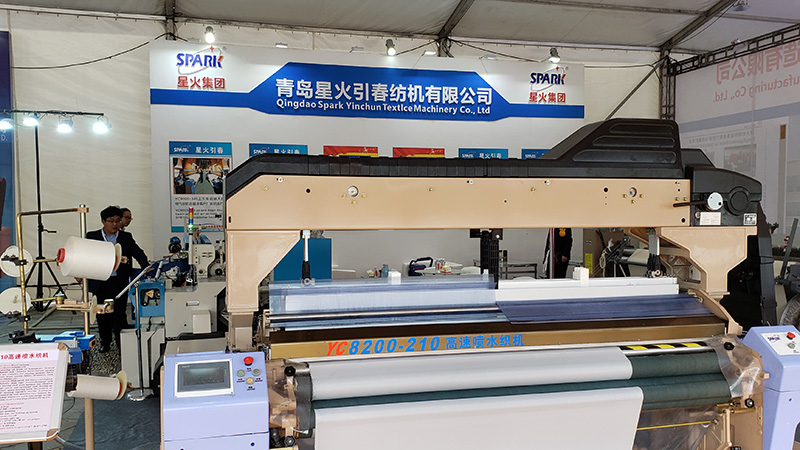

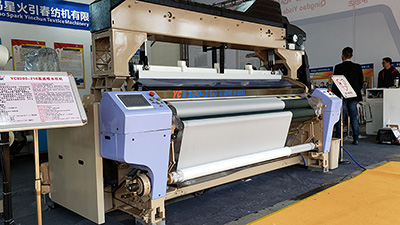

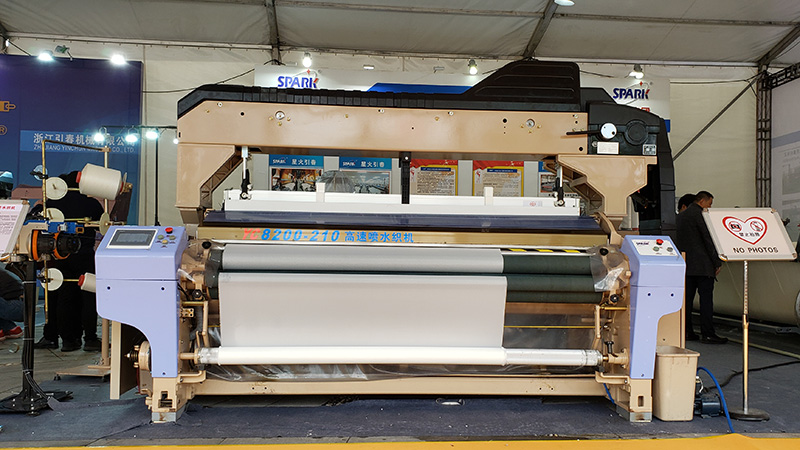

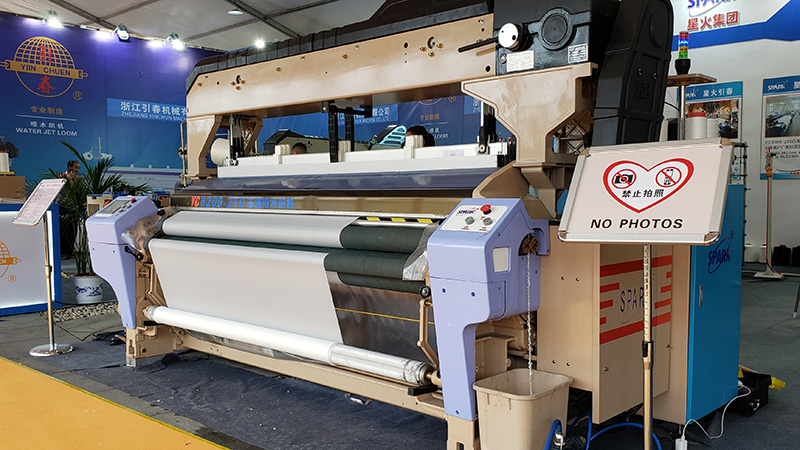

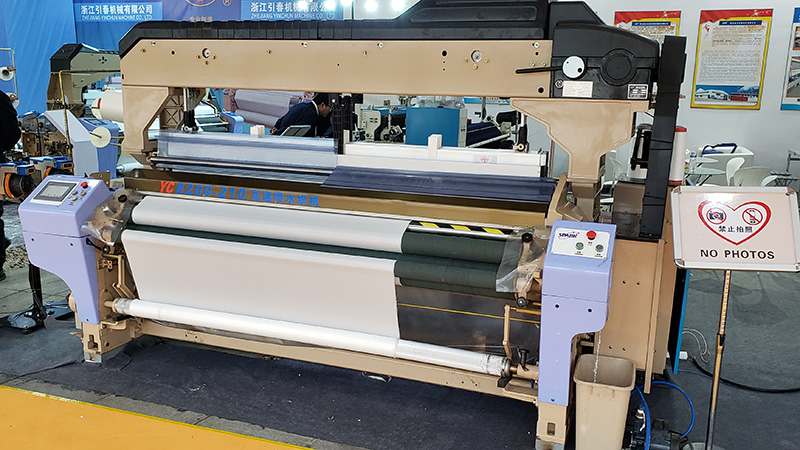

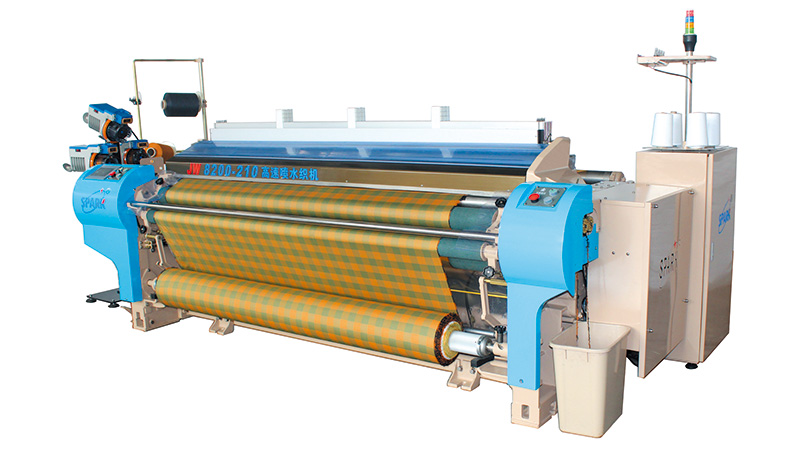

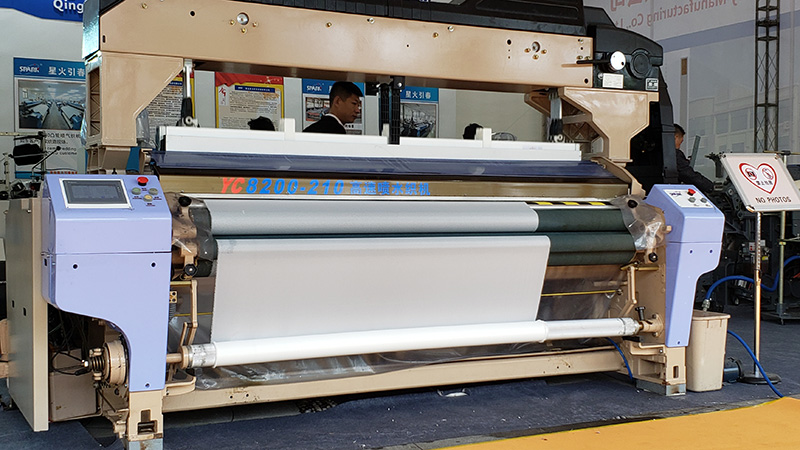

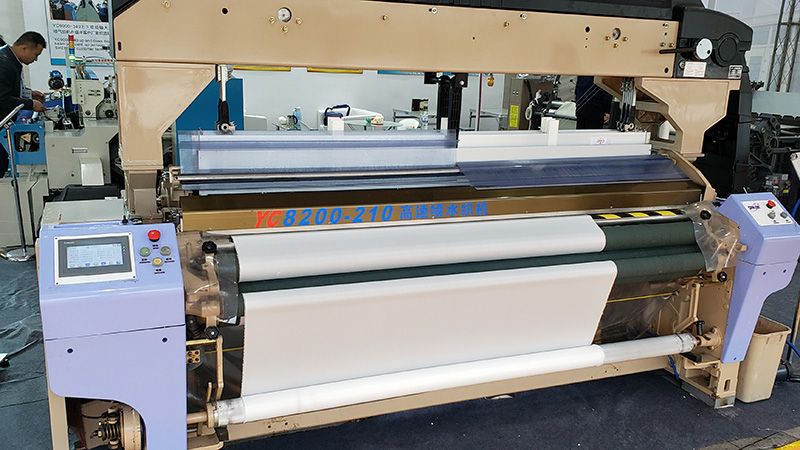

JW8200 Water jet loom

The JW8200 high-speed water jet loom features a higher production efficiency than the JW400 and JW822 water jet looms, with a shift weft density and weaving speed.

The water jet loom features an integrated machine rack, high machine rigidity, advanced electronic control system, stable weft insertion and a beating up mechanism. Four- or six-link crank beating is available. The water consumption of the JW8200 water jet loom is 30% lower than other looms. This water jet weaving machine is suitable for weaving hydrophobic fabrics, medium-weight and heavy fabrics and industrial textiles with plain, twill, satin or jacquard weaves. Spark’s state-of-the-art water jet loom is also able to weave heavy fabrics up to 600g/m².

• The water jet loom is designed with an electronic let-off mechanism, double back rest and eccentric beating shaft to maintain tension on weft and warp yarns, making the water jet loom appropriate for weaving of high-density heavy fabrics.
• Slow stop, super-fast startup and electronic compensation for the shed allow the water jet loom to perform shifting weft density and speed weaving.
• The water jet loom features a super-fast start-up motor, large-capacity electromagnetic brake and fixed-position stop function.
• An advanced control computer ensures the loom’s high rotation speed with a low energy consumption. New nozzle types are used to reduce the water consumption by 30% compared to other models.
