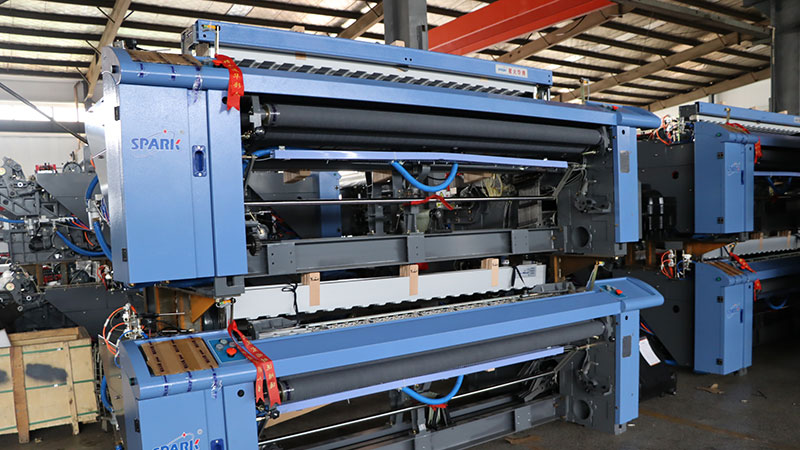

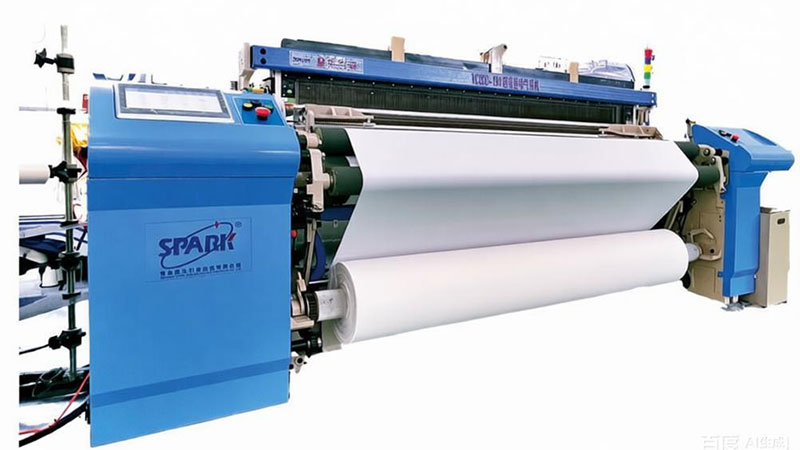

YC920 Air Jet Loom

The YC920 ultra-high-speed air jet loom was developed and put into production in 2018 to meet the demands of a new weaving era characterized by high-speed and high-efficiency production of lightweight fabrics.

The YC920 air jet loom features ultra-high weaving speed, high production efficiency, and excellent fabric quality. An eccentric beat-up mechanism is adopted to improve the loom’s balance and running stability, effectively reducing excessive machine vibration during operation and minimizing vibration transmitted to the floor.

In addition, the air jet loom is equipped with a new-generation electronic control system featuring fast calculation speed, high transmission efficiency, and strong anti-interference performance, providing a reliable foundation for high-speed, energy-saving operation.

The beating up angle and warp yarn position are both adjustable, thus adding clearness and fullness to woven fabrics, making it suitable for woven denim fabrics, apparel cloth as well as industrial fabrics. The air jet loom works better with heavier yarns than it does with light yarns.

• Application: Cotton yarn or chemical fiber
• Reed width: 190, 210, 230, 280 cm
• Designed speed: 900-1200 rpm
• Weaving Range: 22D-1350D; Ne 100-Ne 2.5
• Weft selection: 1, 2, 3, 4, 6 Colors
• Shedding: Plain, Cam, Dobby and Jacquard shedding

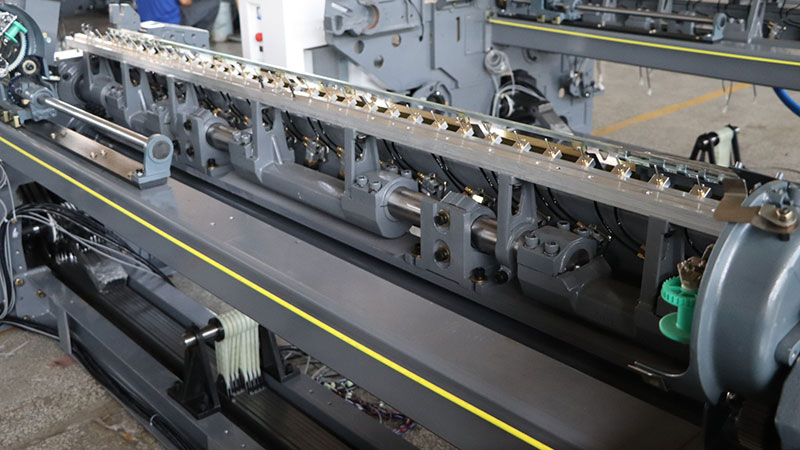

• Beating-up: High speed 4-bar beating-up (6-bar beating-up optional)
• Selvedge: Raw edge or air tuck-in selvedge
• Let-off device: Electronic let-off
• Take-up: Electronic take-up
